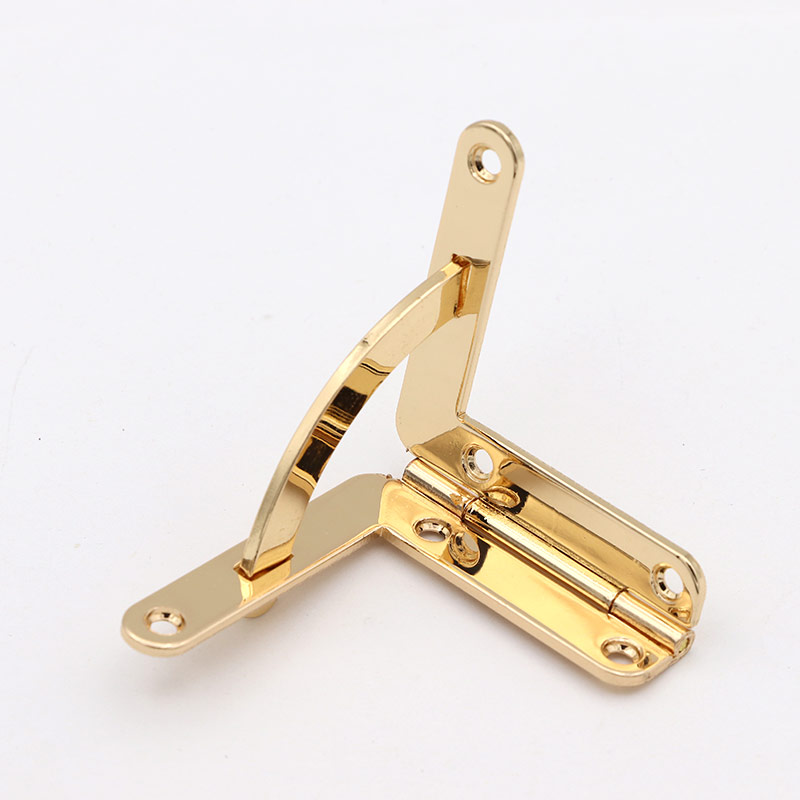

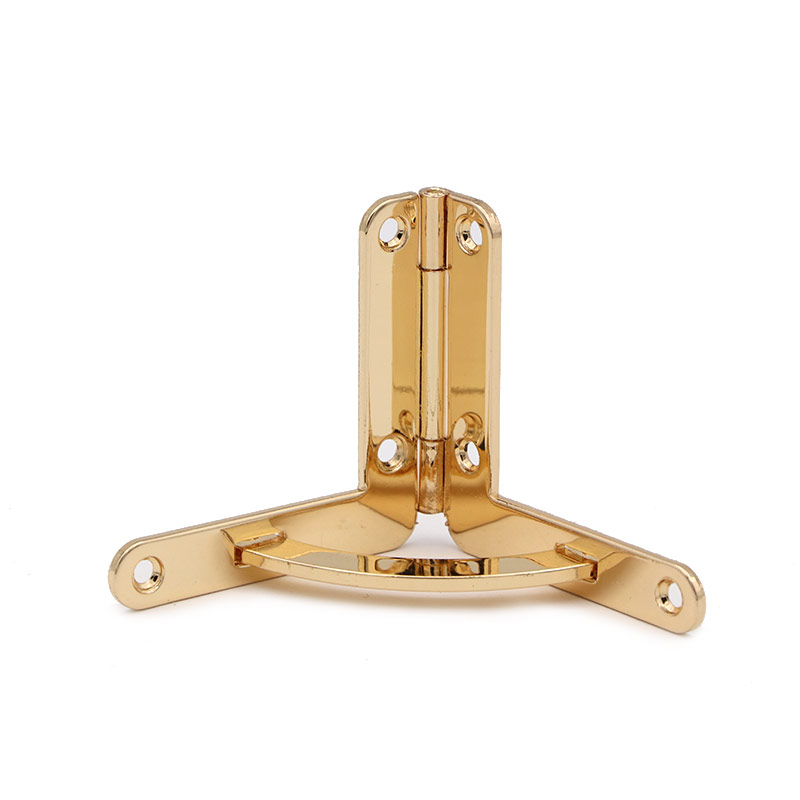

B043 Metal Quadrant Hinge

It is made of high quality stamping iron material.
We can supply the related screws, no need to buy screws, save time and effort.
It is widely used in cigar boxes, wooden boxes, jewellery boxes, suitcases, wine boxes, watch winder and high-quality gift boxes,etc.
Package Type: Standard Package or You can require what packing requirement you need
Size:
Degree:
Material:
Color:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • PB043

  • Gexin Hardware

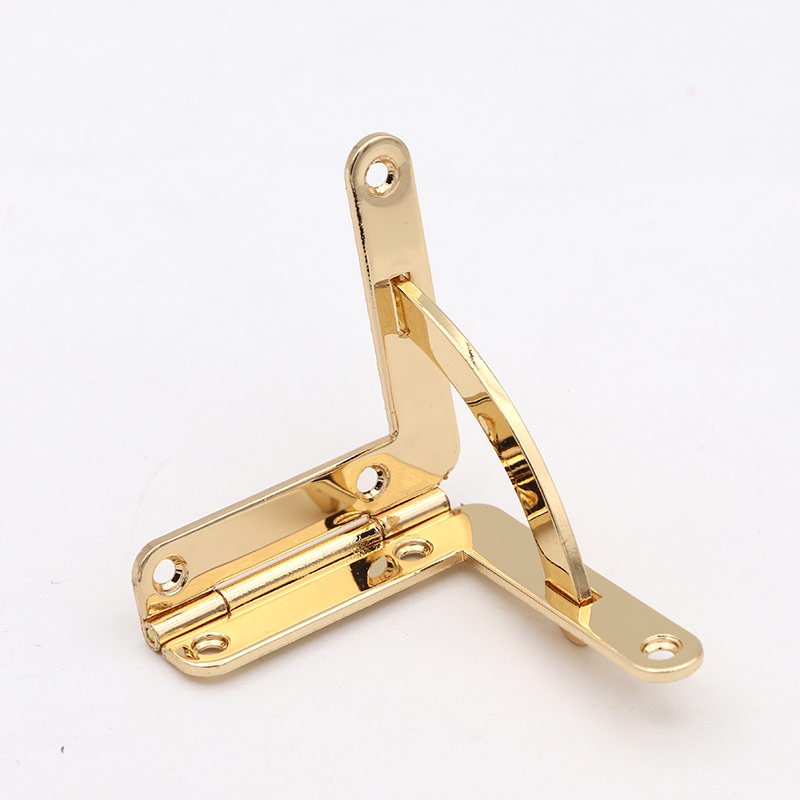

B043 Metal Quadrant Hinge  - Description:

Product Name

Metal Quadrant Hinge

Place of Origin

Guangdong, China

Brand Name

GeXin

Model Number

PB043

Material

Metal

Application

For wine box/cigar box/jewelry box/perfume box/cosmetic case

Color

Gold,welcome to customize

Size

Axial Length 43.3MM,Axial Width 11.5MM,Feet Length 46.5MM,Feet Width 8MM,Material Thickness 1.6MM,

Rod Thickness 2MM,Axial Diameter 3.5MM

Opening Angle

95 degree

Weight

21.4Gram

Sample

Free&Available,Less than 3 PCS

MOQ

1000 Pcs or 3000 Pcs,depend on what product you required

Surface Treatment

Polished Or Rolled Plating

What is a Metal Quadrant Hinge?B043 Metal Quadrant Hinge (2)

A metal quadrant hinge is a specialized hinge mechanism often used in fine woodworking, cabinetry, box making, and even luxury packaging. The “quadrant” refers to its arc-shaped reinforcing arm, which not only serves as a hinge but also prevents the lid from opening beyond a certain angle, typically 90 degrees. Most commonly made of durable metals like brass or stainless steel, quadrant hinges add both strength and elegance to boxes and cases.

Compared to regular butt hinges or piano hinges, metal quadrant hinges stand out for their integrated stop feature and decorative appeal, making them ideal for premium jewelry boxes, watch cases, humidors, and small chests.


Key Features of Metal Quadrant Hinges

1. Built-in Stop Mechanism:
A defining feature is the built-in stopping arm or “quadrant,” limiting the lid’s opening movement and protecting hinges and box structure from overextension.

2. Discreet Installation:
When the lid is closed, only a slim section of the hinge is visible, preserving the clean look of your project.

3. Durability:
Constructed from robust materials such as solid brass, stainless steel, or zinc alloy, these hinges can withstand frequent use while offering a smooth pivot action.

4. Aesthetics:
Quadrant hinges come in polished, satin, or antiqued finishes, allowing you to match the hardware to your box or cabinetry for a cohesive look.


Main Applications of Metal Quadrant Hinges

Jewelry Boxes

Metal quadrant hinges are frequently installed in premium jewelry boxes to allow the lid to open delicately and remain securely positioned at 90 degrees. Their elegant curves and reliable mechanics make them the preferred choice for high-value storage.

Watch Cases & Collectible Boxes

Collectors trust metal quadrant hinges for watch boxes, cigar humidors, and display cases. The integrated stop mechanism ensures the lid won't topple backward, preserving the integrity and precision of the container.

Luxury Packaging

Brands use quadrant hinges in high-end product packaging and presentation boxes to create a sense of quality, improving the unboxing experience and perceived value.

Writing Slopes/Desks

Antique-style writing slopes and drop-front desks often rely on metal quadrant hinges not just for support, but also for period-appropriate aesthetics.

Custom Furniture

Small cabinets, side tables with storage compartments, and armoires benefit from the sleek functionality and style of quadrant hinges.


Types of Metal Quadrant Hinges

1. Classic Quadrant Hinges

Traditional quadrant hinges feature a semi-circular arm nestled within a precision-machined mortise, usually crafted from brass with a polished or lacquered finish.

2. Heavy-Duty Quadrant Hinges

Designed for larger boxes or heavier lids, these versions possess reinforced arms and mounting plates, sometimes made of stainless steel for enhanced load-bearing.

3. Concealed Quadrant Hinges

Engineered to be as discreet as possible, these hinges have minimal visible elements when the box is closed, offering a “hidden hardware” look.

4. Decorative Quadrant Hinges

Some quadrant hinges incorporate decorative scrollwork, engraving, or custom finishes to complement ornate woodworking or bespoke furniture.


Materials Used in Metal Quadrant Hinges

  • Brass: The most popular choice, offering corrosion resistance, a pleasing gold hue, and malleability for detailed work.

  • Stainless Steel: Offers superior strength and resistance to tarnish or rust—ideal for humidors or applications in damp environments.

  • Zinc Alloy: Frequently used for more affordable options, sometimes with brass or chrome plating.

  • Bronze: Chosen for antique reproductions and high-end traditional furniture.


How to Choose the Right Metal Quadrant Hinge

1. Assess Lid Size and Weight

Ensure the quadrant hinge can adequately support your box lid. Heavy or oversized lids may require reinforced or larger hinges, or hinges installed in pairs.

2. Consider Finish and Aesthetic

Select a finish that complements your project's hardware—polished brass for classic luxury, satin nickel for modern minimalism, or antiqued bronze for a vintage feel.

3. Quality of Mechanism

Opt for precision-cast or machined hinges for a smoother operation, especially in high-use items.

4. Installation Requirements

Match the hinge size and type to your skill level; certain quadrant hinges require meticulous mortising, best left to experienced woodworkers.


Metal Quadrant Hinge Installation Guide

Tools & Materials Needed

  • Chisel or router (for recessed mortise)

  • Small screwdriver

  • Marking gauge or pencil

  • Ruler or calipers

  • Drill with fine drill bits

  • Wood glue (optional, for extra security)

Step-by-Step Instructions

  1. Mark Hinge Position
    With the box lid closed, mark the hinge placement ensuring symmetrical alignment on both sides of the box.

  2. Cut Mortises
    Use a chisel or router to carefully create shallow mortises for the hinge wings, and a deeper curved mortise for the quadrant arm. The fit should be snug but not force the hardware.

  3. Test Fit the Hinge
    Place the hinge in the mortise to check alignment. The hinge leaf should sit flush with the box and the lid, and the quadrant arm should pivot easily.

  4. Drill Pilot Holes
    With the hinge held in place, mark screw holes and drill small pilot holes to prevent the wood from splitting.

  5. Install Screws
    Attach the hinge with supplied screws. Be careful not to overtighten as this may strip the wood or warp the hinge.

  6. Test Lid Movement
    Open and close the lid several times. The stop arm should engage cleanly at 90 degrees, and the lid should close fully without excess friction.

  7. Final Adjustments
    If necessary, widen or deepen the mortise slightly for easier operation, or add a tiny dab of wood glue to reinforce the screws.


Metal Quadrant Hinge Maintenance

To keep your quadrant hinges performing and looking their best:

  • Regular Cleaning: Wipe down with a dry, soft cloth. For brass, use a specific brass cleaner to maintain shine.

  • Lubrication: Apply a tiny drop of light machine oil to the pivot pin for smoother action.

  • Tighten Screws: Check the hinge attachment screws annually and retighten as needed.

  • Avoid Corrosive Cleaners: Keep harsh chemicals and cleaning agents away from metallic finishes.


Where to Buy Metal Quadrant Hinges

1. Online Hardware Stores:
Websites like Rockler, Lee Valley, Woodcraft, and Amazon offer a wide variety of metal quadrant hinges in different finishes and sizes.

2. Local Specialty Stores:
High-end woodworking or furniture restoration stores often carry premium metal quadrant hinges, sometimes with in-person advice.

3. Direct From Manufacturers:
For large orders or custom sizes, contact hinge manufacturers directly to get the best price and fit for your project.


Frequently Asked Questions (FAQ)

Q: What makes a quadrant hinge different from a regular hinge?

A: The metal quadrant hinge includes a built-in arc arm or quadrant that acts as a stop, preventing the lid from opening beyond a set angle. This protects the box and adds elegance, in contrast to regular butt or piano hinges which swing freely.

Q: Do I need special skills to install a quadrant hinge?

A: Installing metal quadrant hinges requires precise mortising for a flush fit. If you are inexperienced with a chisel or router, practice with scrap wood first or seek professional help.

Q: Can quadrant hinges be used for large cabinets?

A: While typically used for smaller boxes, heavy-duty quadrant hinges can support certain cabinet lids or drop-fronts, provided the weight doesn’t exceed manufacturer recommendations.

Q: Are quadrant hinges available in different finishes?

A: Yes. They come in brass, nickel, chrome, antique bronze, and even black finishes to coordinate with any project.

Q: How many quadrant hinges do I need?

A: Most small to medium boxes use two hinges. For larger or heavier lids, three may provide better support.

Q: Are quadrant hinges visible when the box is closed?

A: Only a slim edge or decorative tip is visible in high-quality designs, allowing for a very clean exterior.


SEO Optimization: Why Metal Quadrant Hinges?

Professionals searching for metal quadrant hinge solutions are often concerned with both durability and sophisticated design. Targeting these needs, quadrant hinges offer:

  • Easy lid or panel support and limitation

  • Enhanced visual appeal for luxury woodworking and packaging

  • A range of sizes, finishes, and materials to match different projects

  • Solutions for jewelry boxes, watch cases, humidors, desks, and more

Proper use of metal quadrant hinges improves product reliability and market value, making them a must-consider choice for craftspeople and manufacturers alike.


Tips for Selecting Metal Quadrant Hinges for Your Project

  • Double-Check Measurements: Ensure your box or lid thickness accommodates the hinge’s mount depth.

  • Consider Matching Hardware: Coordinating hinges, handles, and locks present a unified look.

  • Evaluate Brand Reputation: Brands with consistent positive reviews often offer smoother pivot action and longer-lasting finishes.


Notable Brands and Suppliers

  • SOSS: Known for high-end concealed and specialty hinges.

  • Hafele: Wide selection of furniture hardware, including quadrant hinges in several finishes.

  • Brusso: Renowned for premium, precision-cast brass quadrant hinges ideal for heirloom projects.


Metal Quadrant Hinge Troubleshooting

  • Hinge Too Tight: Mortise may be too shallow. Gently deepen the recess until the hinge moves freely.

  • Lid Won’t Open Fully: The quadrant arm might be misaligned. Realign and reinstall.

  • Hinge Loosens Over Time: Use longer screws, or fill holes with hardwood dowels and reinstall.


Conclusion: The Value of Metal Quadrant Hinges

A metal quadrant hinge is more than a simple fastener—it is a blend of functional innovation and sophisticated design that elevates every box or lid it supports. From securing precious jewelry to protecting high-end watches, these hinges are the professional choice for craftspeople who demand reliability, beauty, and usability.

Choosing the right metal quadrant hinge ensures the longevity and value of your project while enhancing the tactile experience for the end user. Whether you’re a box maker, a restoration expert, or a luxury brand, don’t overlook the power of a perfectly chosen and installed quadrant hinge—small in size, immense in impact.
